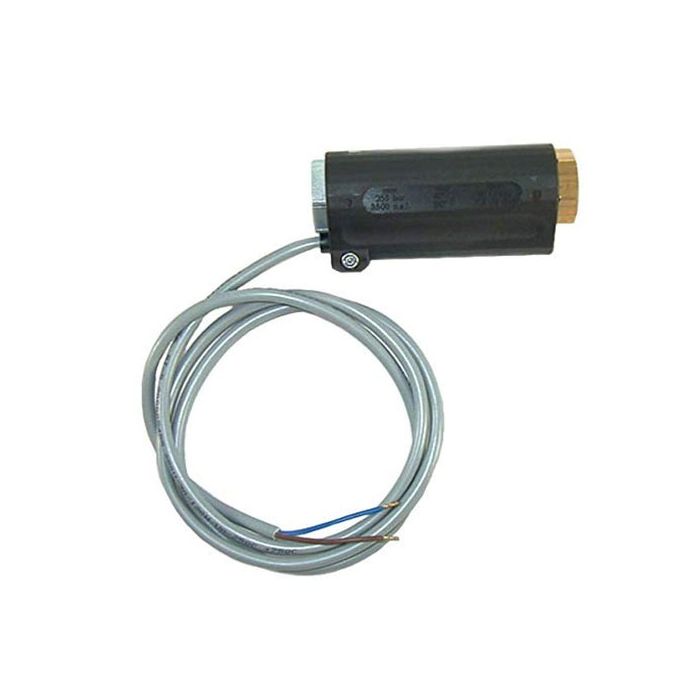

AR MV60H Flow Switch - Any Position Mount (8 GPM, 5660 PSI, 180°F)
Brass body flow switch with 3/8" FPT connections. Any-position mounting (horizontal or vertical). Reed switch activates burner on water flow.
In stock
- SKU
- 4084
$82.27
Loading...
Description
AR MV60H flow switch for hot water pressure washers. Brass hydraulic body with any-position mounting capability (horizontal or vertical). Reed switch activates when water flow is established, signaling the burner to turn on.
Specifications:
- Max Pressure: 5,660 PSI
- Max Flow: 8 GPM
- Min Flow: 1.8 GPM
- Max Temperature: 180°F
- Connections: 3/8" FPT inlet/outlet
- Switch Type: 2-wire reed (12-250V, 0.8 amp)
- Body: Brass
Applications: Hot water pressure washers, pump protection, cooling-circuit protection, carpet cleaning equipment, sanitizing equipment.
More reliable than vacuum switches. Excellent for low-pressure hot water applications where the spray gun is opened frequently.
Part number ARMV60H.
