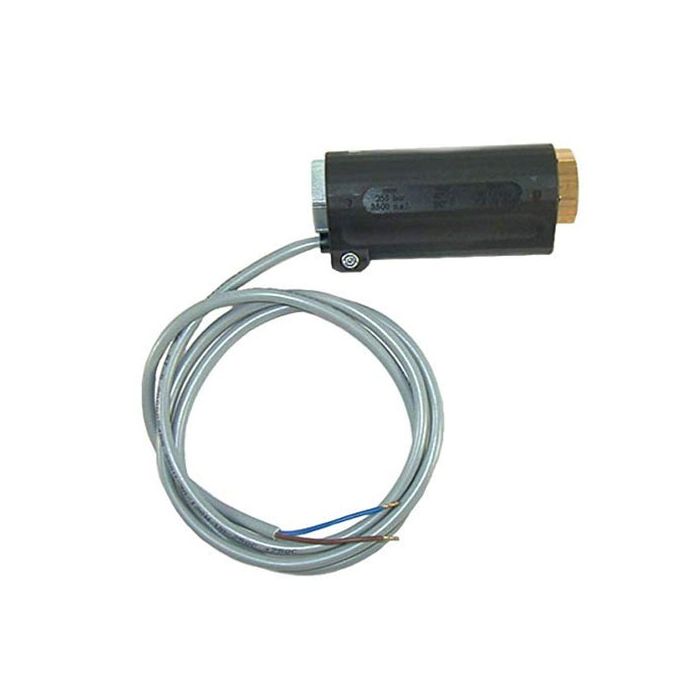

AR MV60V Flow Switch - Vertical Mount (8 GPM, 5660 PSI, 180°F)
Brass body flow switch with 3/8" FPT connections. Vertical mounting only. Reed switch activates burner on water flow.
In stock
- SKU
- 4083
$69.95
Loading...
Description
AR MV60V flow switch for hot water pressure washers. Brass hydraulic body with vertical mounting only. Reed switch activates when water flow is established, signaling the burner to turn on.
Specifications:
- Max Pressure: 5,660 PSI
- Max Flow: 8 GPM
- Min Flow: 1.8 GPM
- Max Temperature: 180°F
- Connections: 3/8" FPT inlet/outlet
- Switch Type: 2-wire reed (12-250V, 0.8 amp)
- Body: Brass
- Wire Length: ~62"
Applications: Hot water pressure washers, pump protection, cooling-circuit protection, carpet cleaning equipment, sanitizing equipment.
More reliable than vacuum switches. Excellent for low-pressure hot water applications where the spray gun is opened frequently.
See also: SKU 4084 (MV60H) for any-position mounting.
Part number ARMV60V.
