Mecline VRT3-310PS6 Unloader Valve with Pressure Switch - Black Spring (4500 PSI)
Unloader valve with integrated pressure switch for burner control or engine throttle-down. Black spring rated to 4,500 PSI, 10.5 GPM max flow.
In stock
- SKU
- 5204
$104.71
Loading...
Description

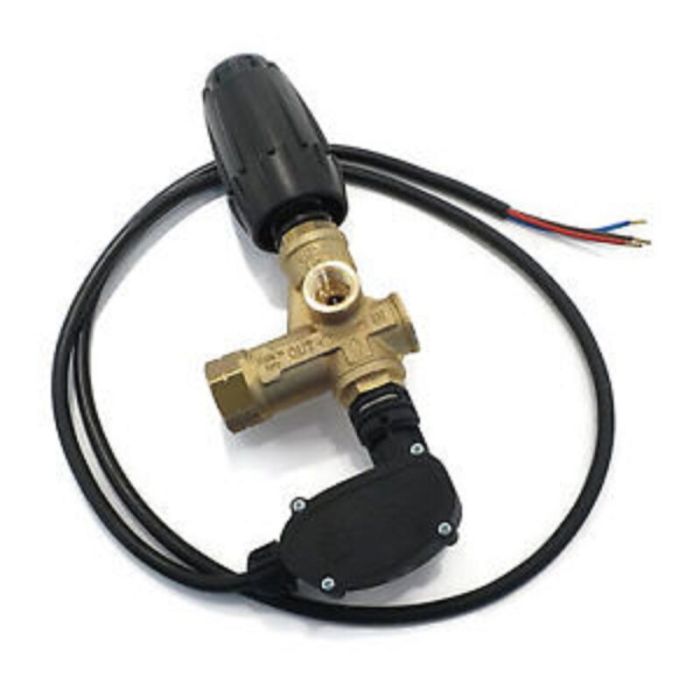

The Mecline VRT3-310PS6 is a trapped pressure unloader valve with an integrated micro switch (pressure switch). The switch detects when the unloader enters bypass mode, allowing for automatic burner control, engine throttle-down, or pump shutoff to save fuel and reduce wear.
Specifications:
- Max Pressure: 4,500 PSI
- Max Flow: 10.5 GPM
- Max Temperature: 194°F (90°C)
- Inlet: 3/8" FPT
- Outlet: 3/8" FPT
- Bypass: 3/8" FPT
- Spring Color: Black
- Body: Forged brass
- Internals: Stainless steel
Features dual locking nuts for vibration resistance, new spring material resistant to fatigue, powder paint coating that resists rusting, and a hex design shutter valve for smooth shifting. Must be installed vertically.
Replaces Mecline VRT3-310PS6. Distributed by AR North America. The VRT3 series is the successor to the MV Series unloaders with improved valve body design and reduced porosity.
Part number VRT3-310PS6.
